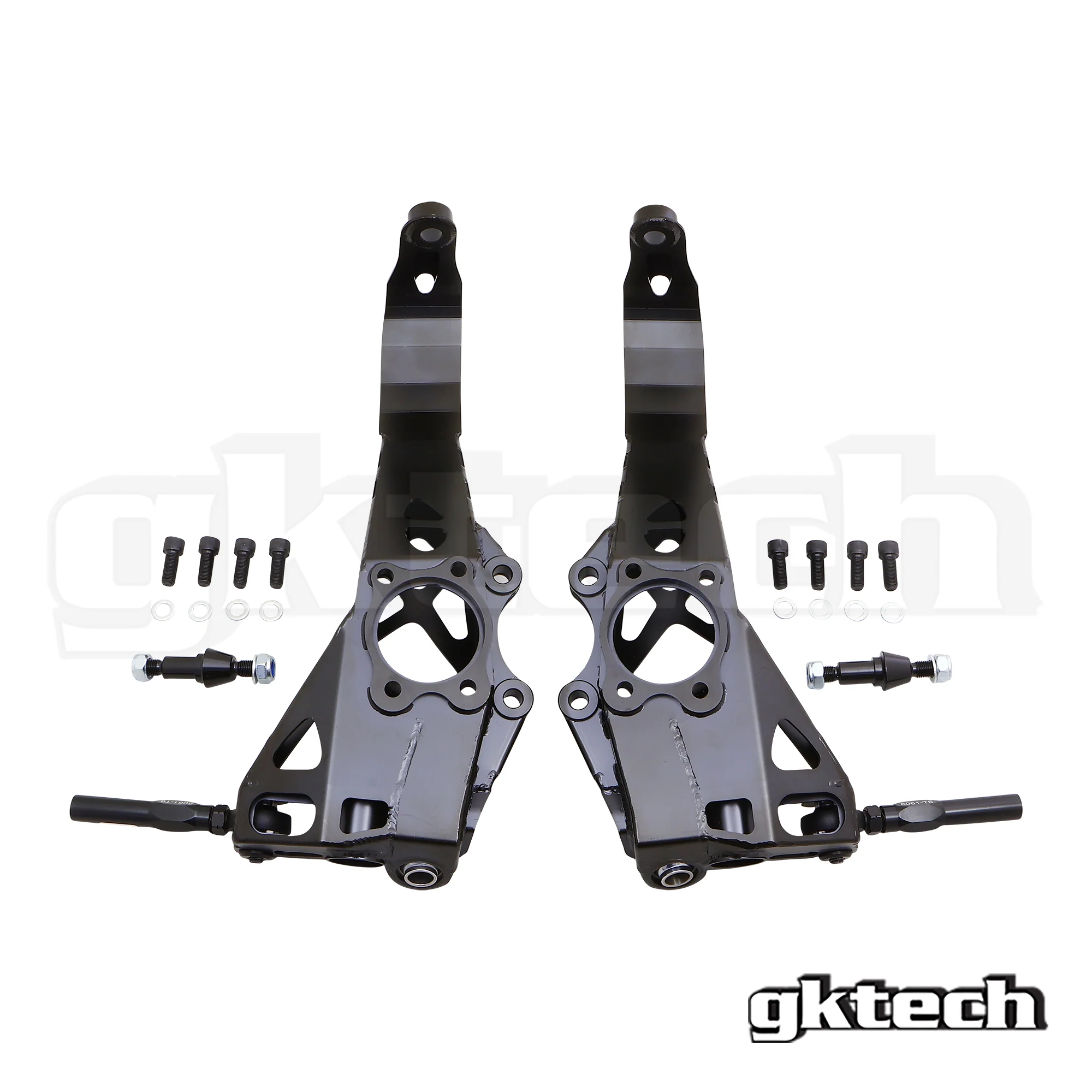

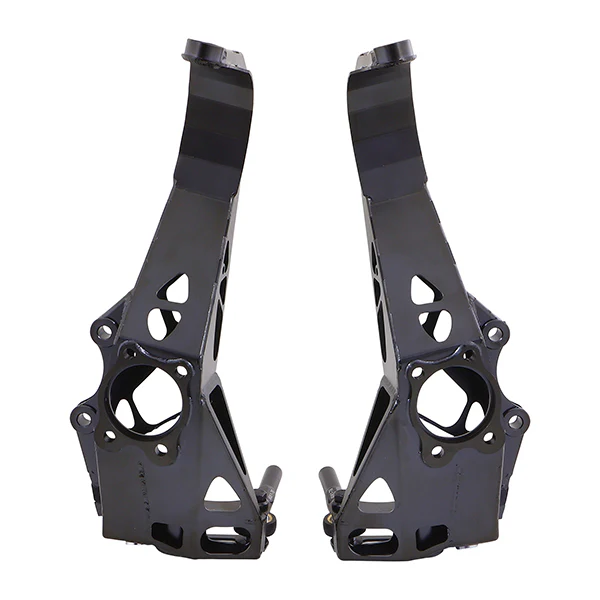

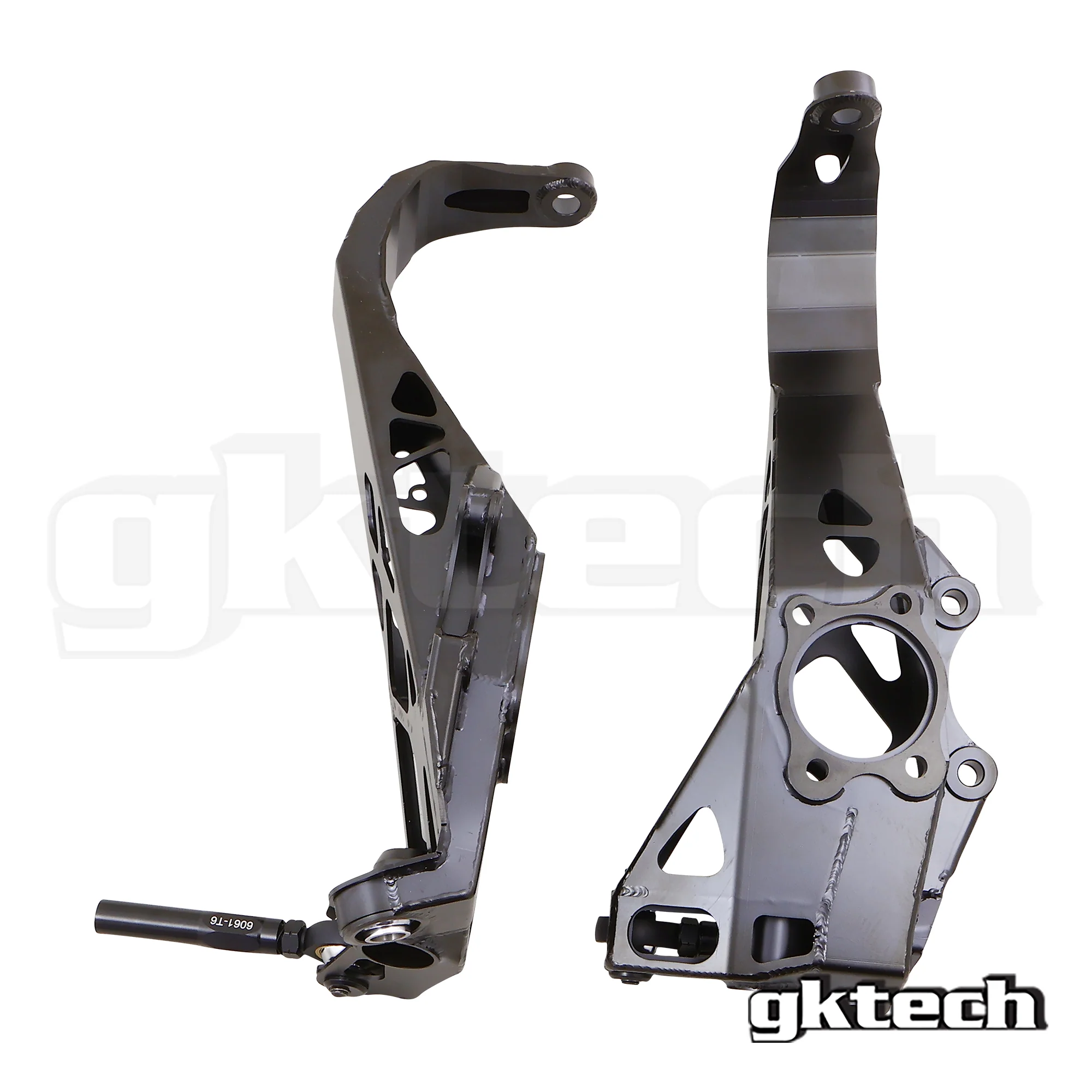

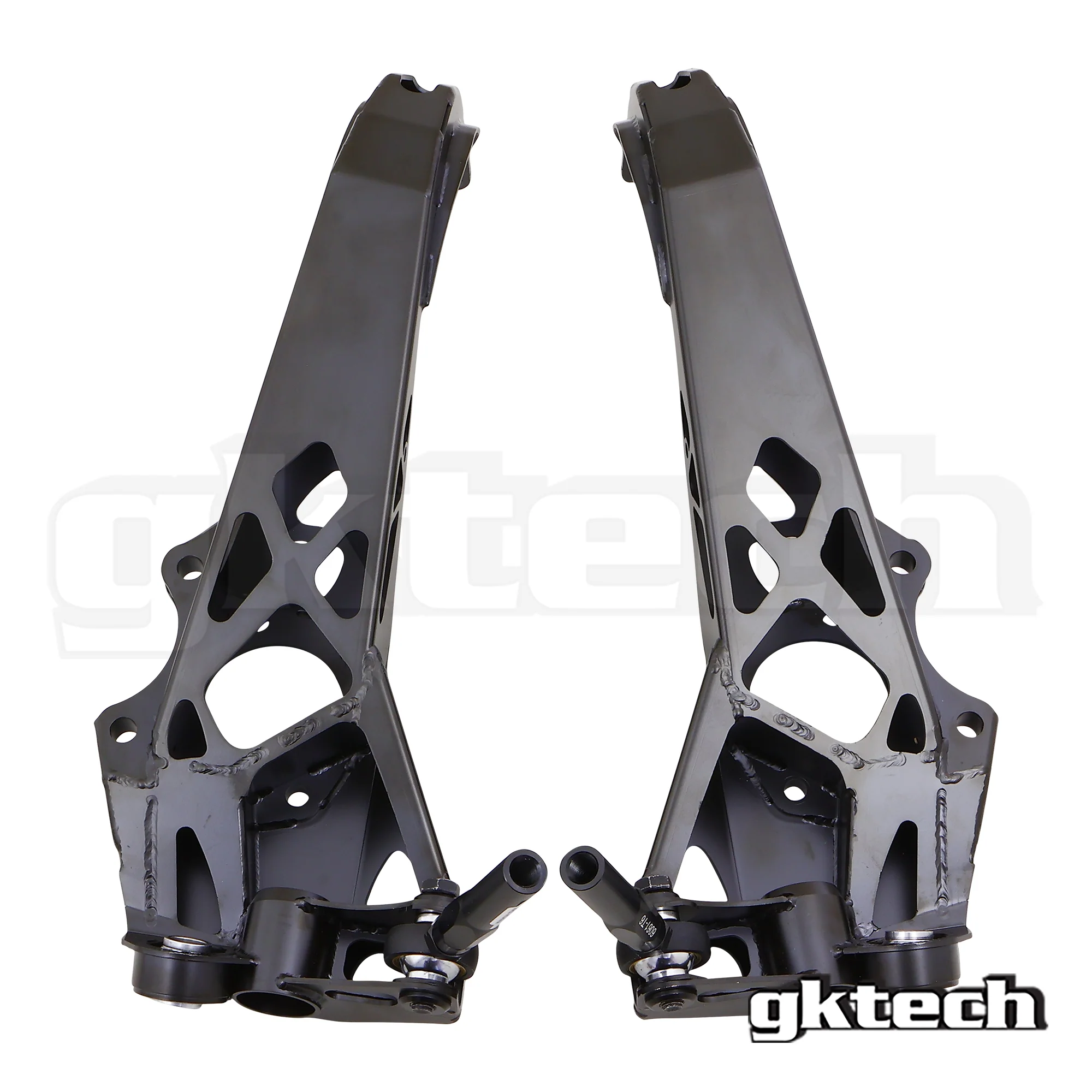

Z33 350z/G35 Grip Front Drop Knuckles
Introducing the ultimate front grip upgrade for the Z33Â 350Z! The grip knuckles are engineered to provide precise and predictable steering response while delivering exceptional handling performance, they are not for the faint-hearted.
We've designed a 30mm drop knuckle to raise the roll center height, enhancing roll resistance and overall handling. The bump steer has been optimized with built-in adjustment, allowing you to fine-tune your setup for predictability and consistency. Additionally, the ackermann is adjustable, offering different steering feel preferences to suit your driving style.
Our knuckles ensure optimized camber gain in roll and bump, resulting in a flatter contact patch and more consistent steering feedback. Constructed from 4130 chromoly steel, they provide incredible strength while still being lightweight. They are specifically designed for OEM style two-piece virtual pivot lower arms, ensuring a perfect fit and improved performance.

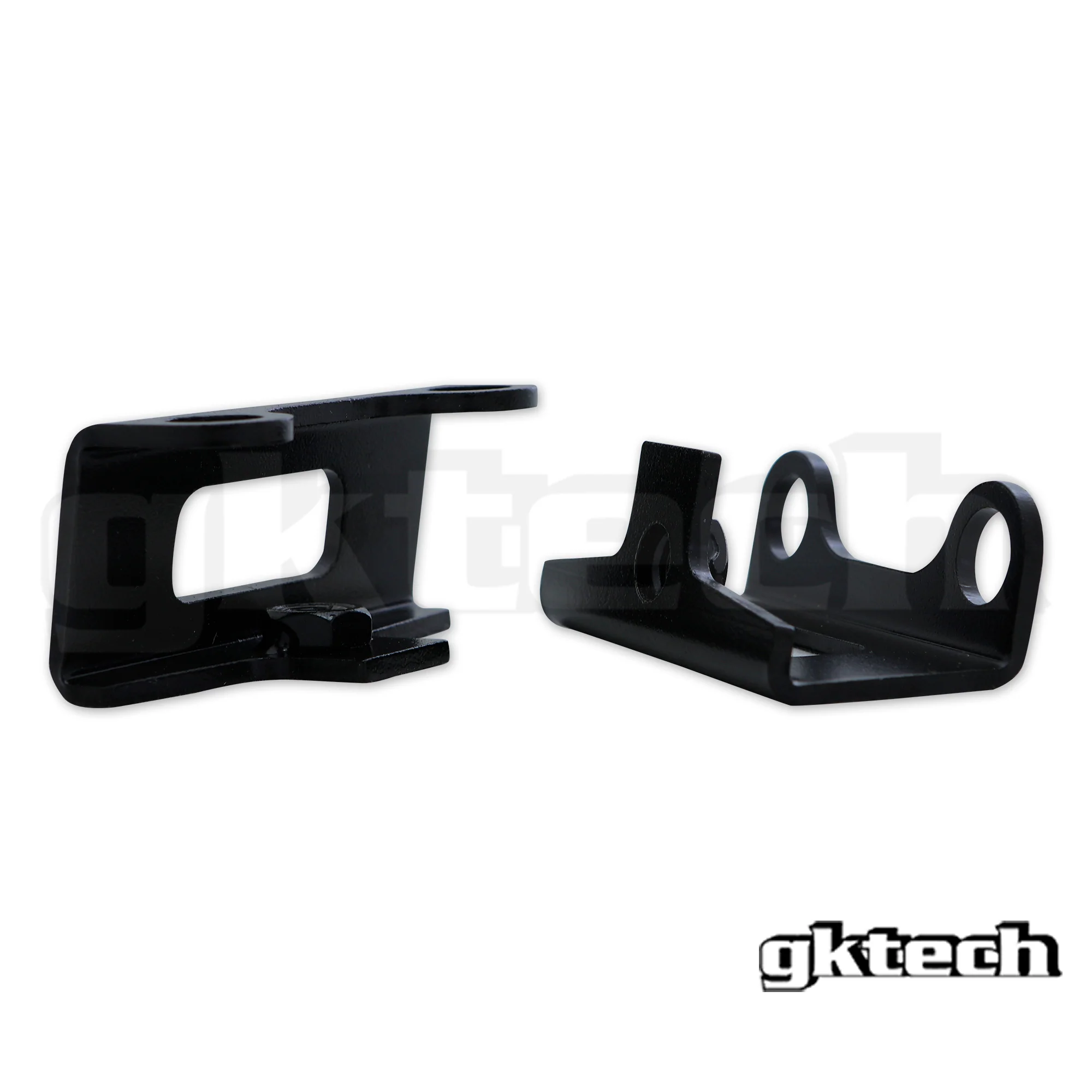

To further enhance performance, we've added high misalignment PTFE lined spherical bearings throughout the knuckles. If you want to run ABS with our knuckles, we offer an option to add a bracket to hold the ABS sensor as well.
Features:
- 30mm drop knuckle to raise roll center heightÂ
- Optimized bump steer with built-in adjustment shims
- Adjustable ackermann
- Optimized camber gain in roll and bump
- Strong but lightweight sheet metal design, constructed from 4130 chromoly steel
- Specifically designed for OEM style two-piece virtual pivot lower arms
- High misalignment PTFE lined spherical bearings throughout
- ABS sensor compatibleÂ
- Durable black e-coating
NOTE: An internal wheel clearance of 425mm or 16.75" is required. This typically means that an 18" wheel is required. However some models, 18" Enkie RPF1s for example, have smaller barrels and do not clear.
